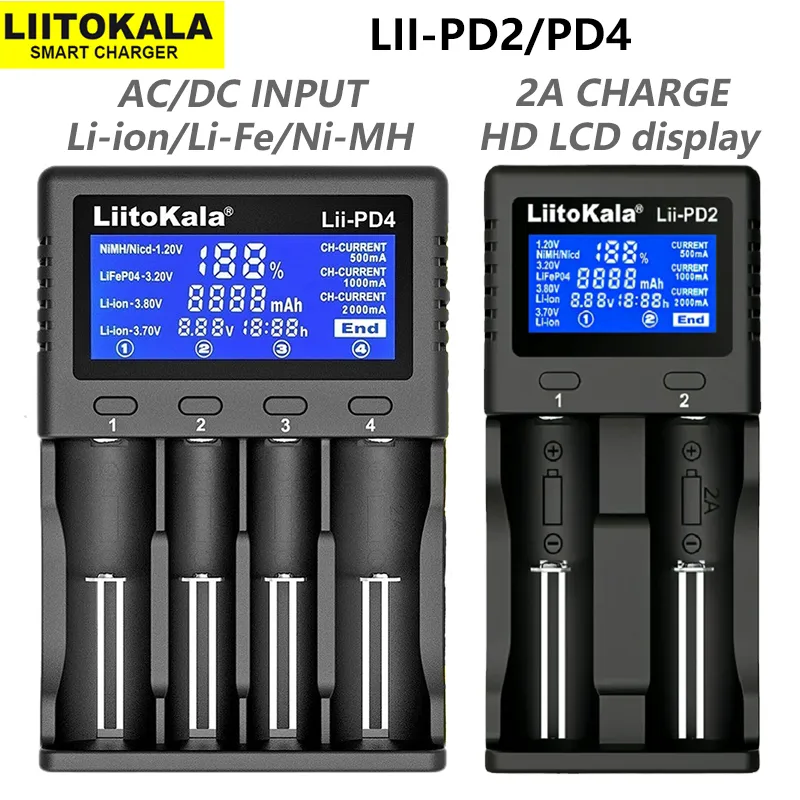

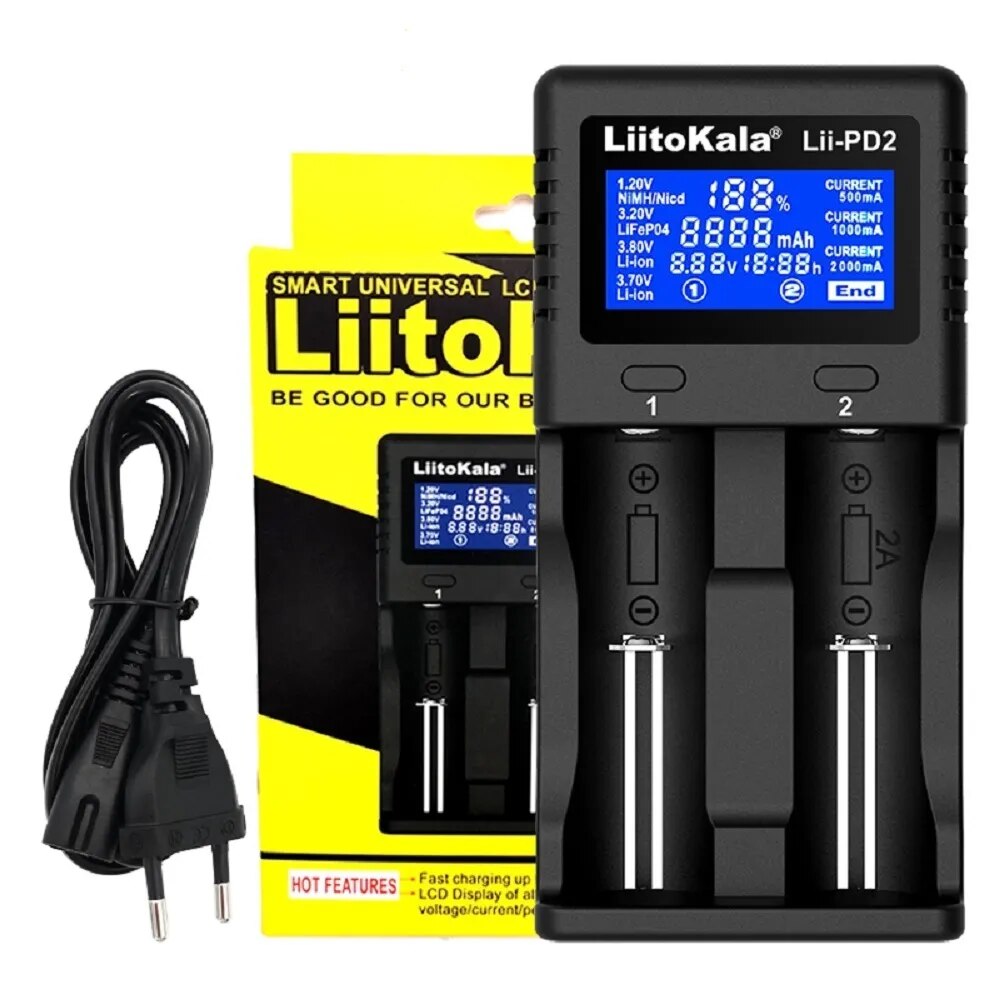

Liitokala Lii-PD2 Lii-PD4 18650 Battery Charger,3.7V 26650 18350 16340 18500 14500 1.2V NI-MH AA AAA LCD Multifunction Charger

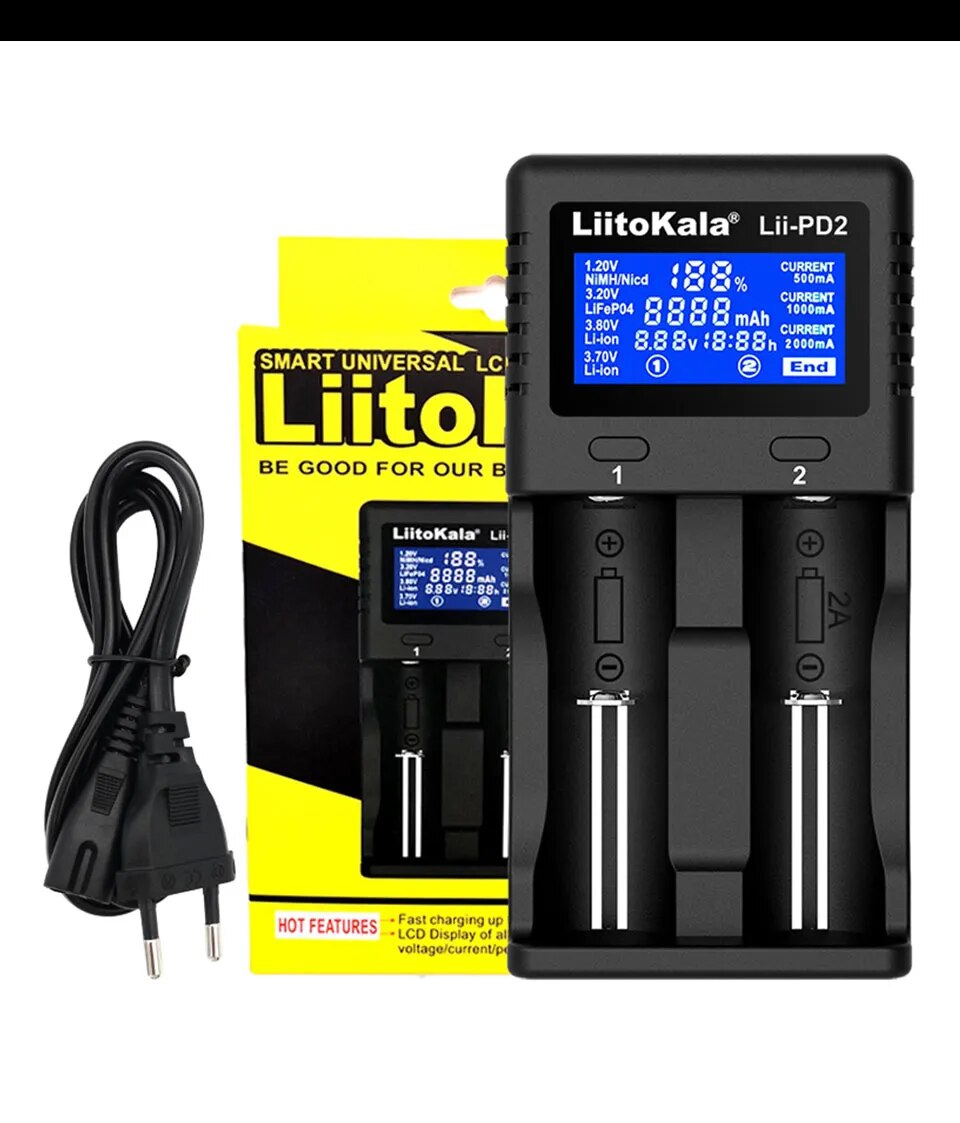

Lii-PD2 Charger Features:

1. Adopt DC12V1A (nominal) input, two-slot independent charging and microcomputer management system;

2. The biggest highlight of this charger is that it can charge the battery regardless of polarity!

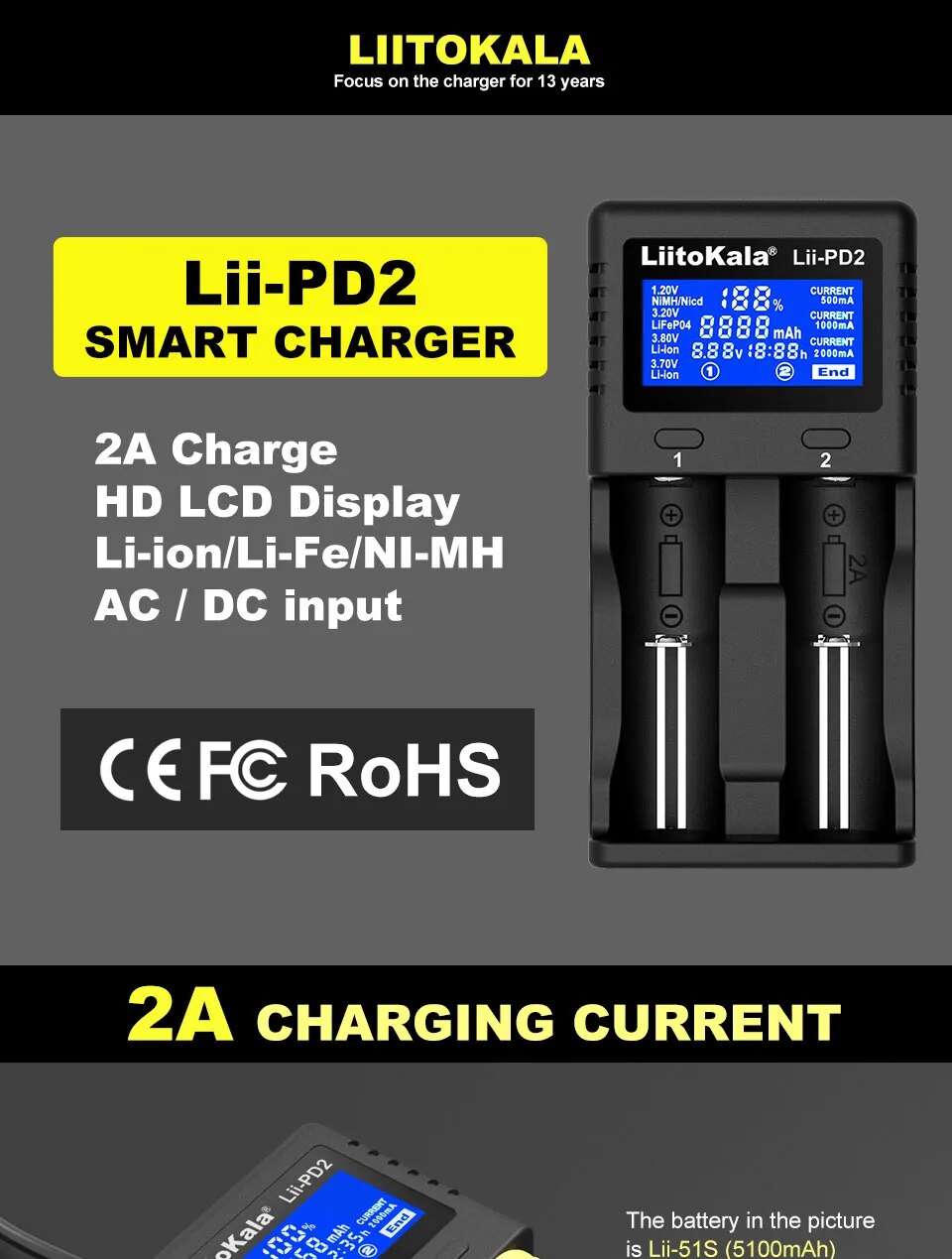

3. There are three levels of charging current: 0.5A/1.0A/2.0A, the default charging is 0.5A, you can long press the corresponding button to select the charging current;

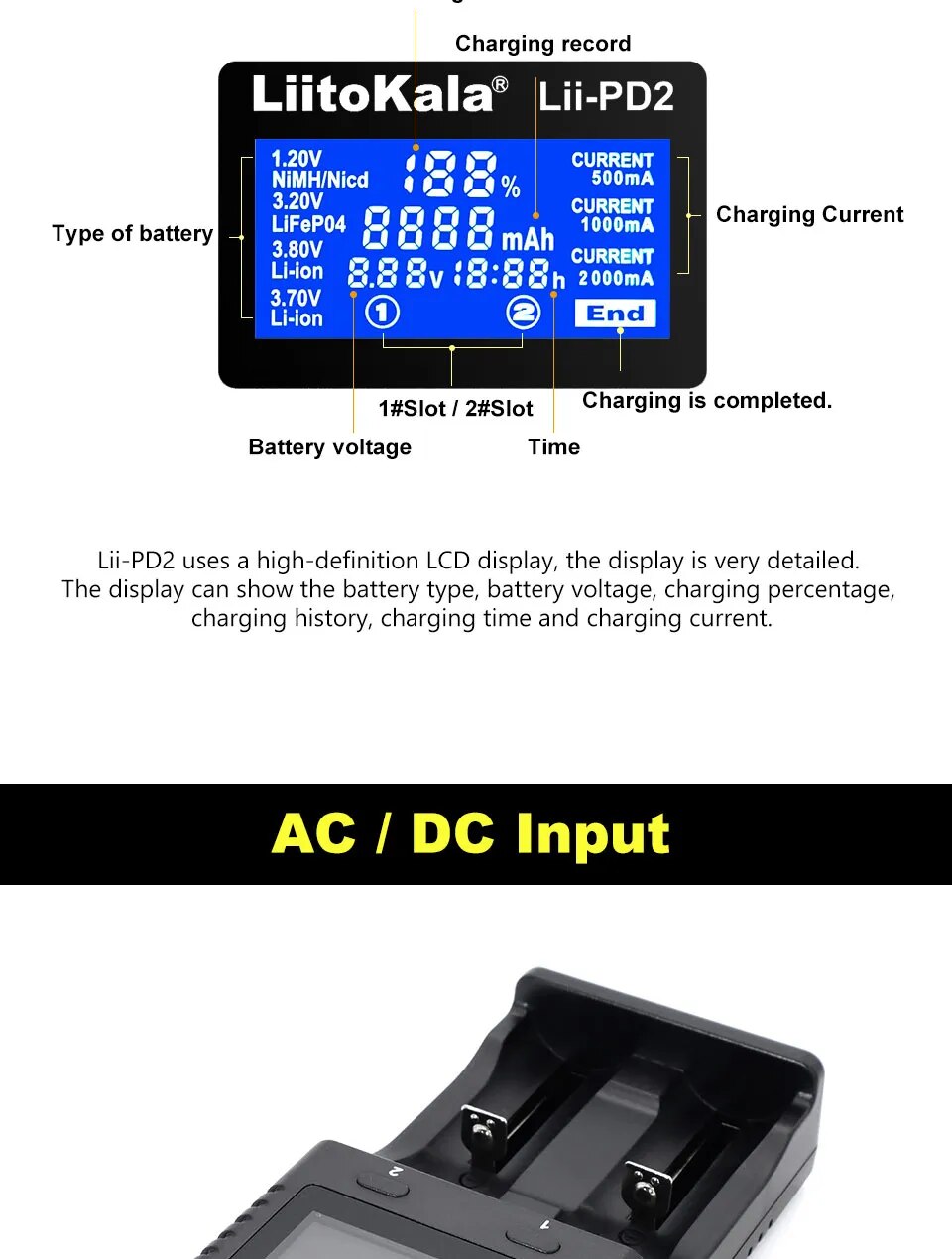

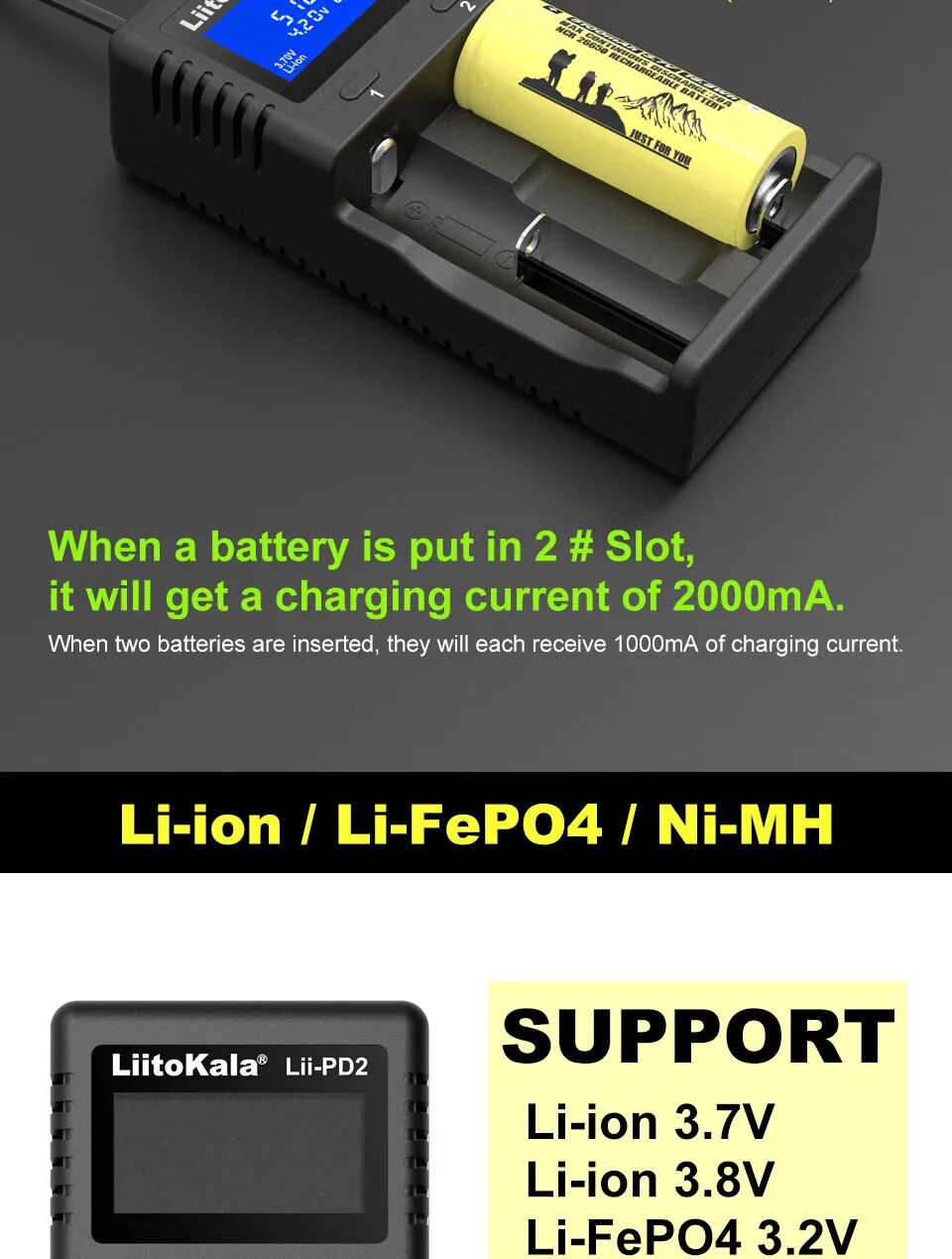

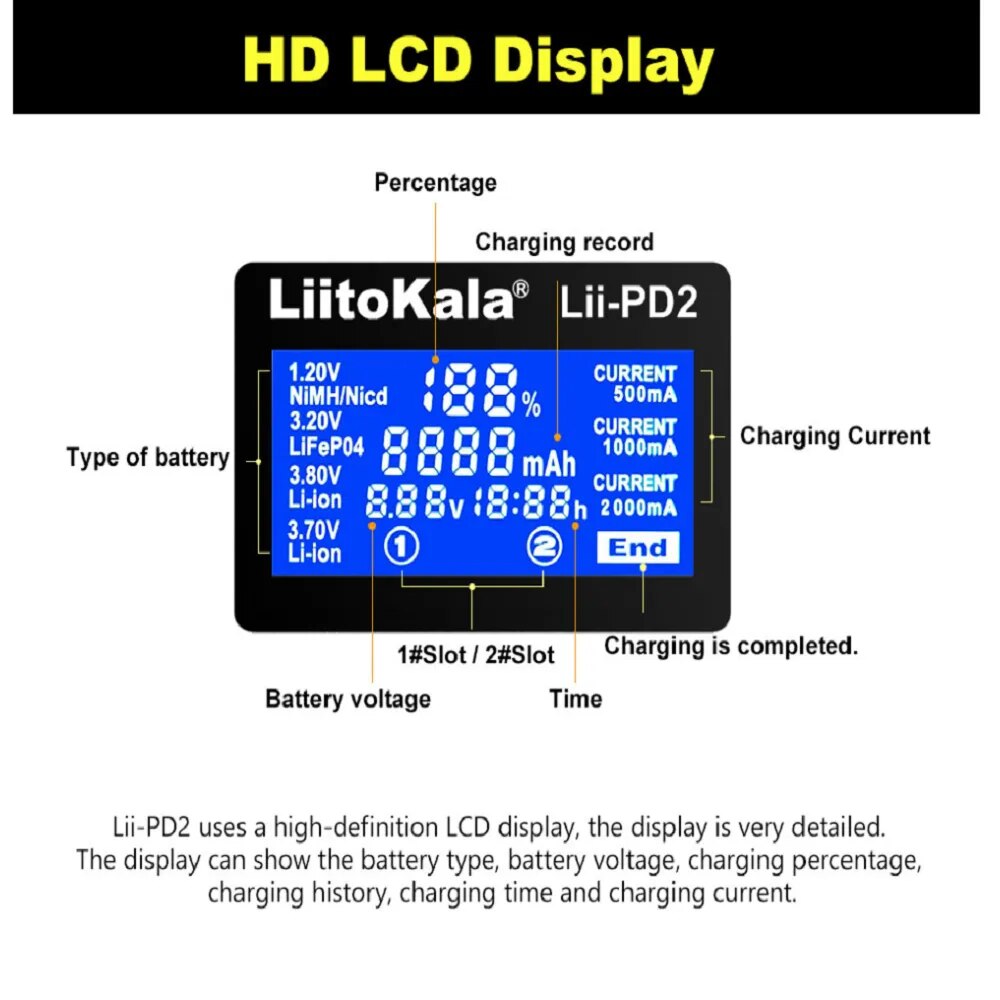

4. When charging, the LCD can display channel CH and the charging current, voltage, time, capacity and battery type of this channel Li-Fe 3.20V /Li-ion 3.70V /Li-ion 3.85V (IMR); the total charging current of the two slots does not exceed 2A, that is, when one of the slots is charged with 2A current, and then the battery is charged in the other slot, the front 2A current will drop back Charge up to 1A current; when the battery is fully charged, the LCD will display FULL;

5. It can automatically identify lithium battery (Li-Ion 3.70V) battery and nickel-metal hydride (Ni-MH) battery, and manually select lithium iron phosphate battery (3.20V) and Li-Ion 3.85V battery;

6. With 0V voltage activation function, 1.65-2.20V cannot be charged (but there will be activation current trickle charging).

7. There are multiple safety protection functions such as overcharge, overdischarge, short circuit, etc. At the same time, it can intelligently and automatically identify bad batteries;

8. Charging mode: constant current and constant voltage.

Electrical technical parameters:

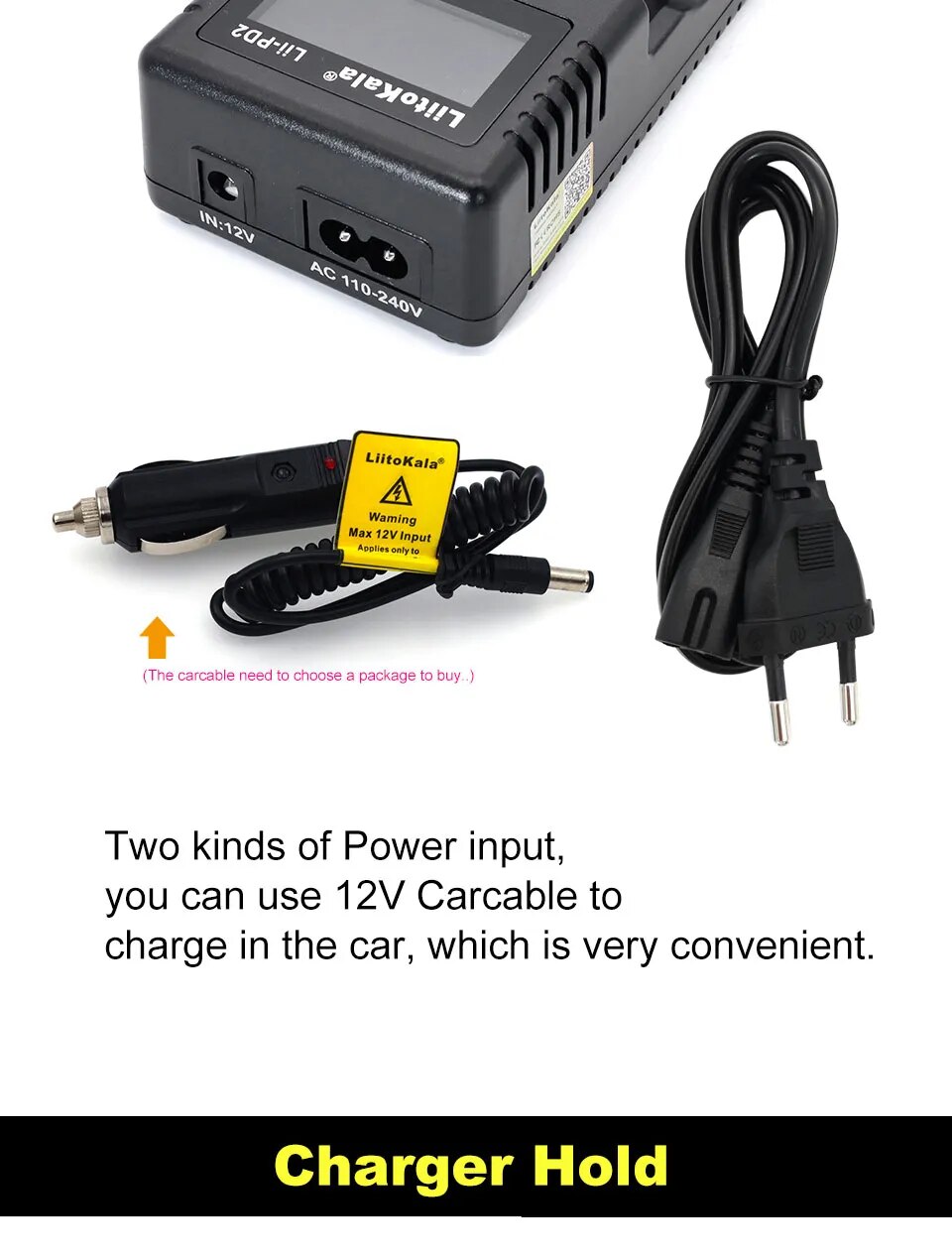

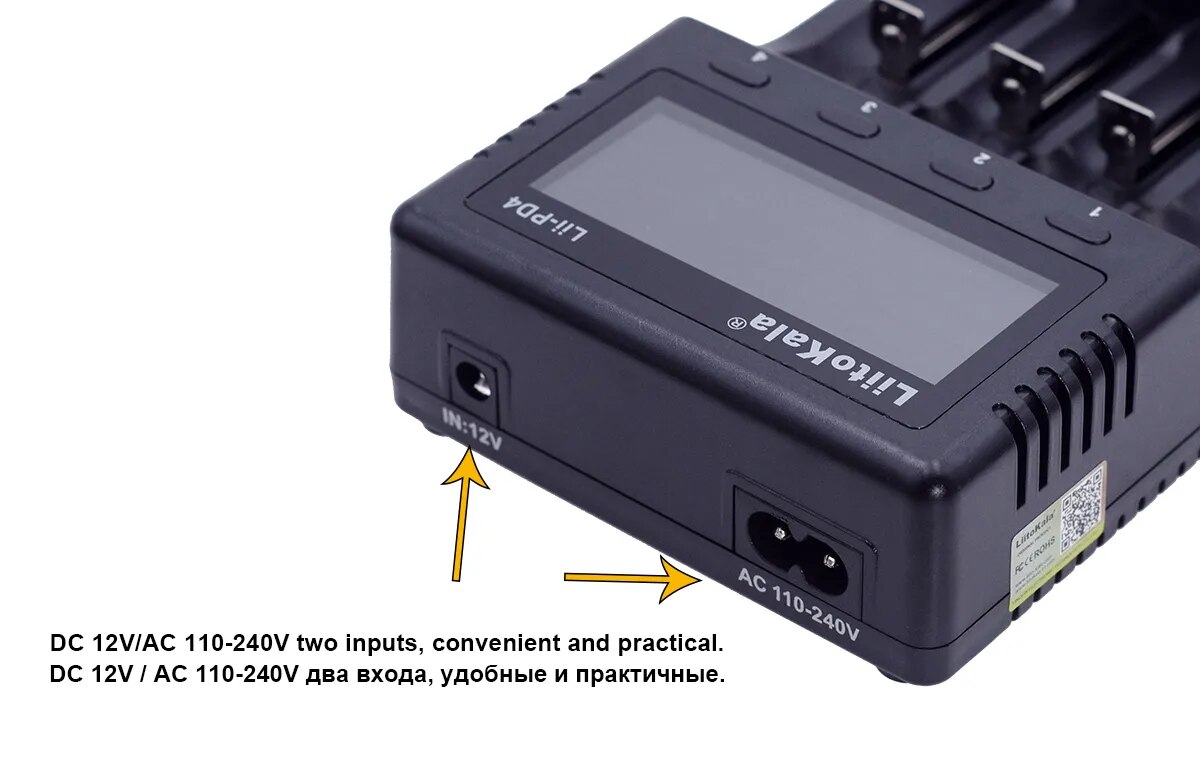

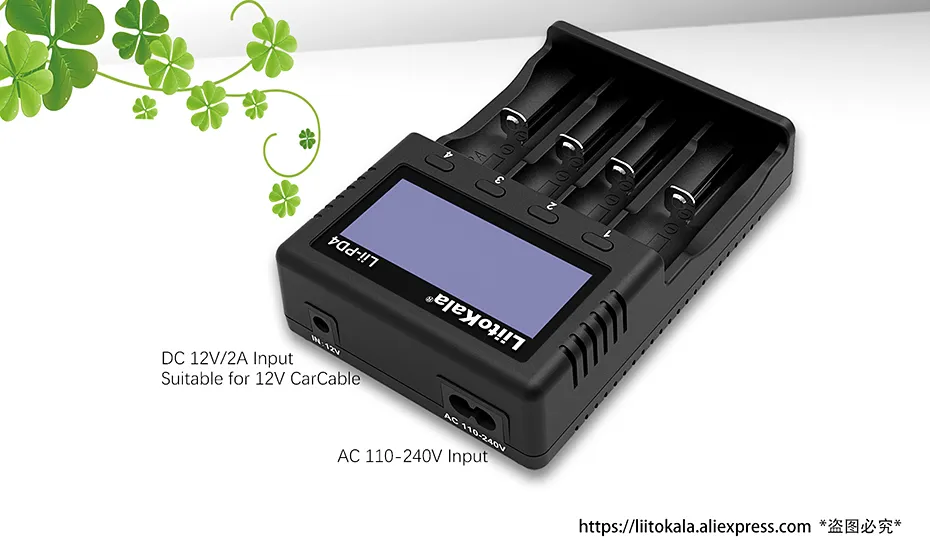

1. Input power: DC 12V 1A

2. Output voltage: DC 4.20V for Li-Ion

DC 4.35V for IMR

DC 3.65V for LiFePO4

DC 1.48V for NiMH/NI-Cd

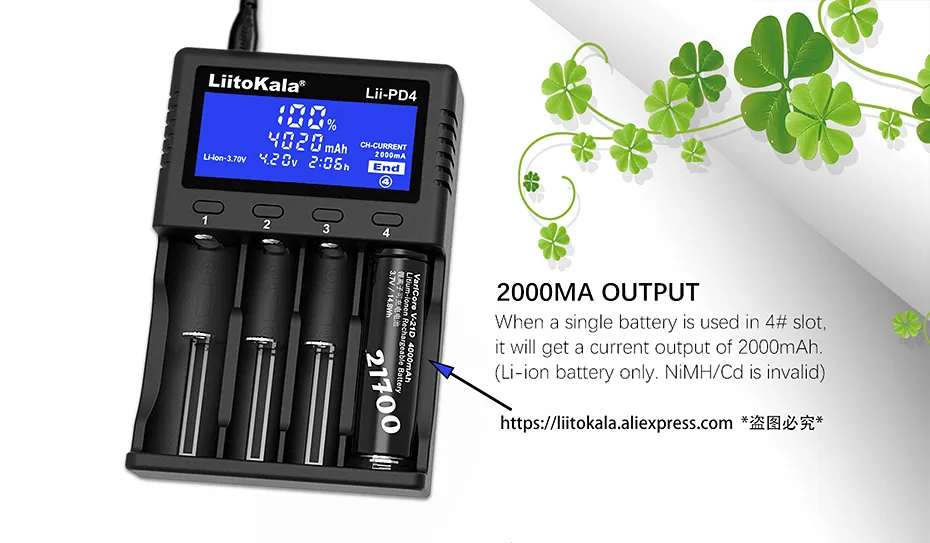

3. Output current (optional): Li-Ion/IMR/LiFePO4: 2000mA*1 (only one)/1000mA*2/500mA*2

NiMH/NiCd: 500mA

4. Constant current/constant voltage charging, cut-off current: <100mA;

5. No-load standby current: <15mA;

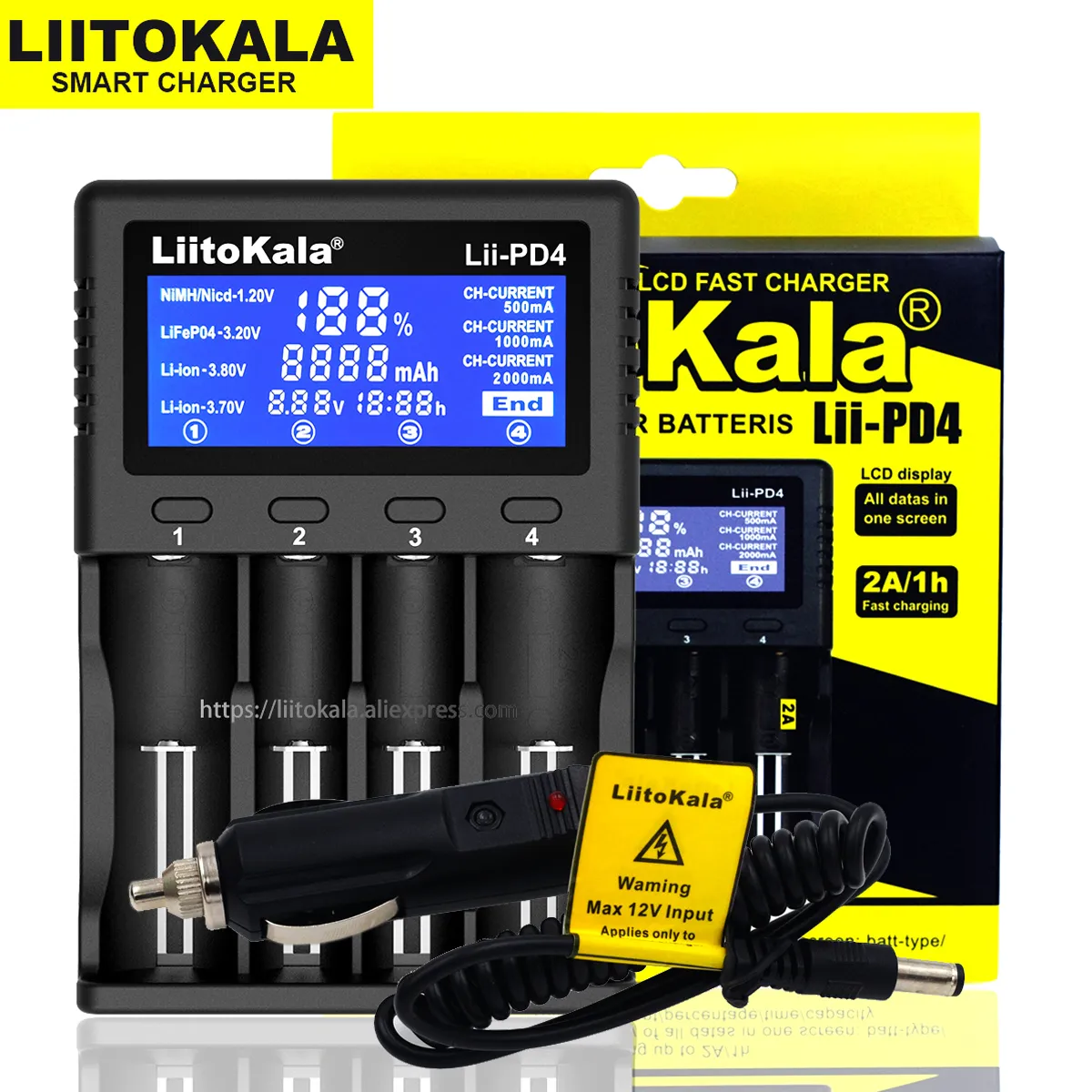

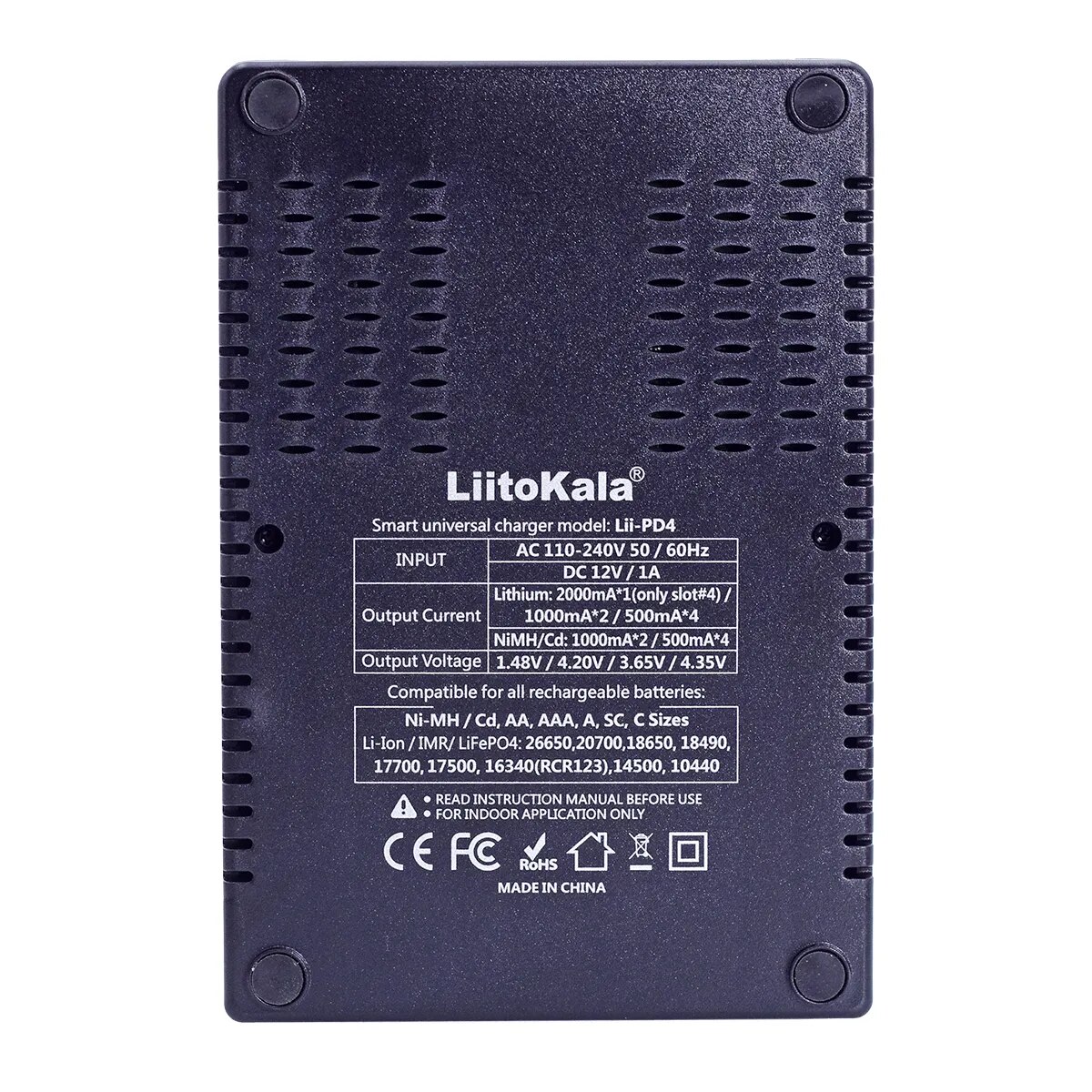

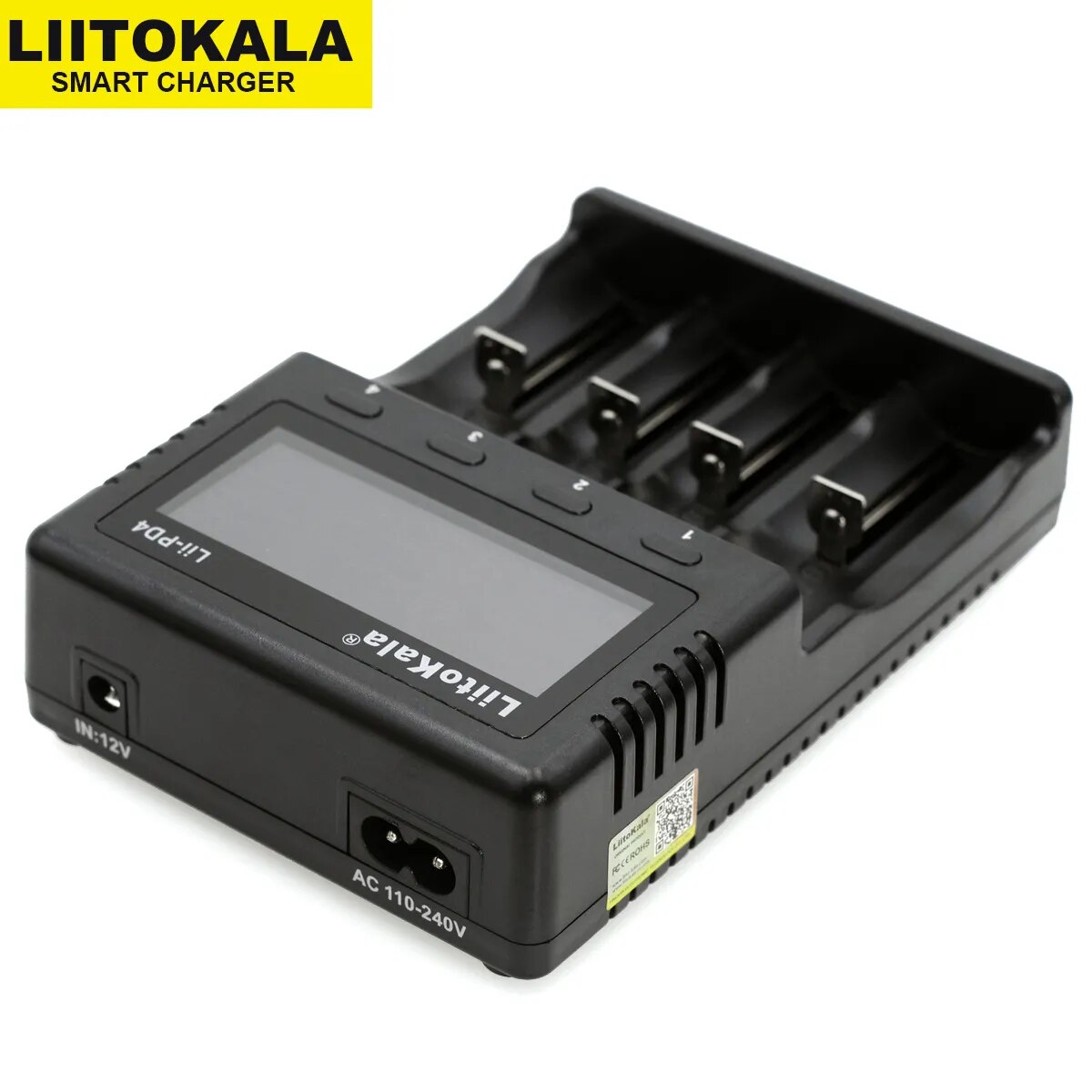

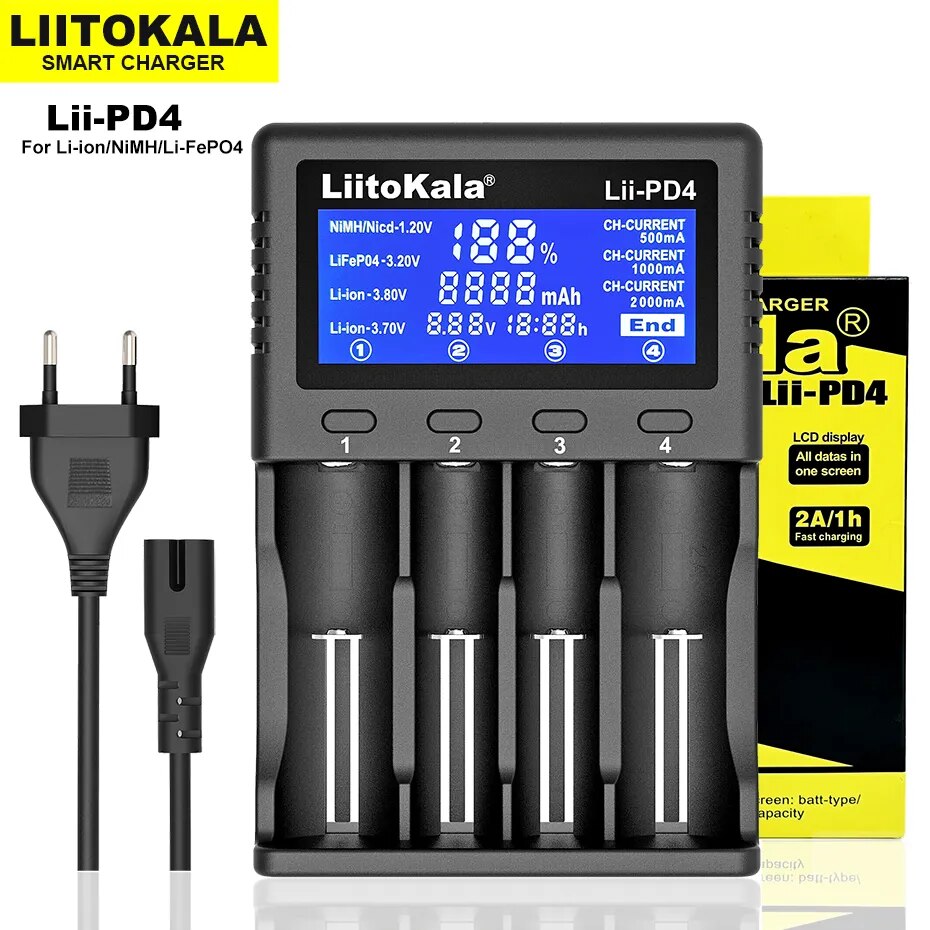

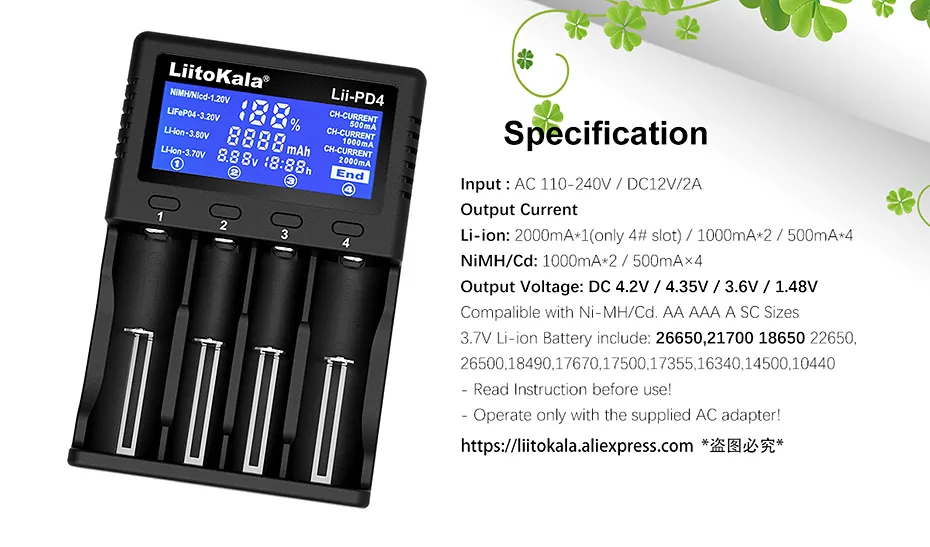

Lii-PD4 Elektrische Parameter:

2. Output spannung: DC 4,2 V für Li-Ion 3,7 V

DC 4,35 V für Li-Ion 3,8 V( IMR)

DC 3,65 V für LiFePO4

DC 1,48 V für NiMH/NI-Cd

NiMH/NiCd: 1000mA * 2, 500mA * 3 500mA * 4

4. konstante spannung, cut-off-strom: weniger als 100mA

5. Standby strom: weniger als 15mA

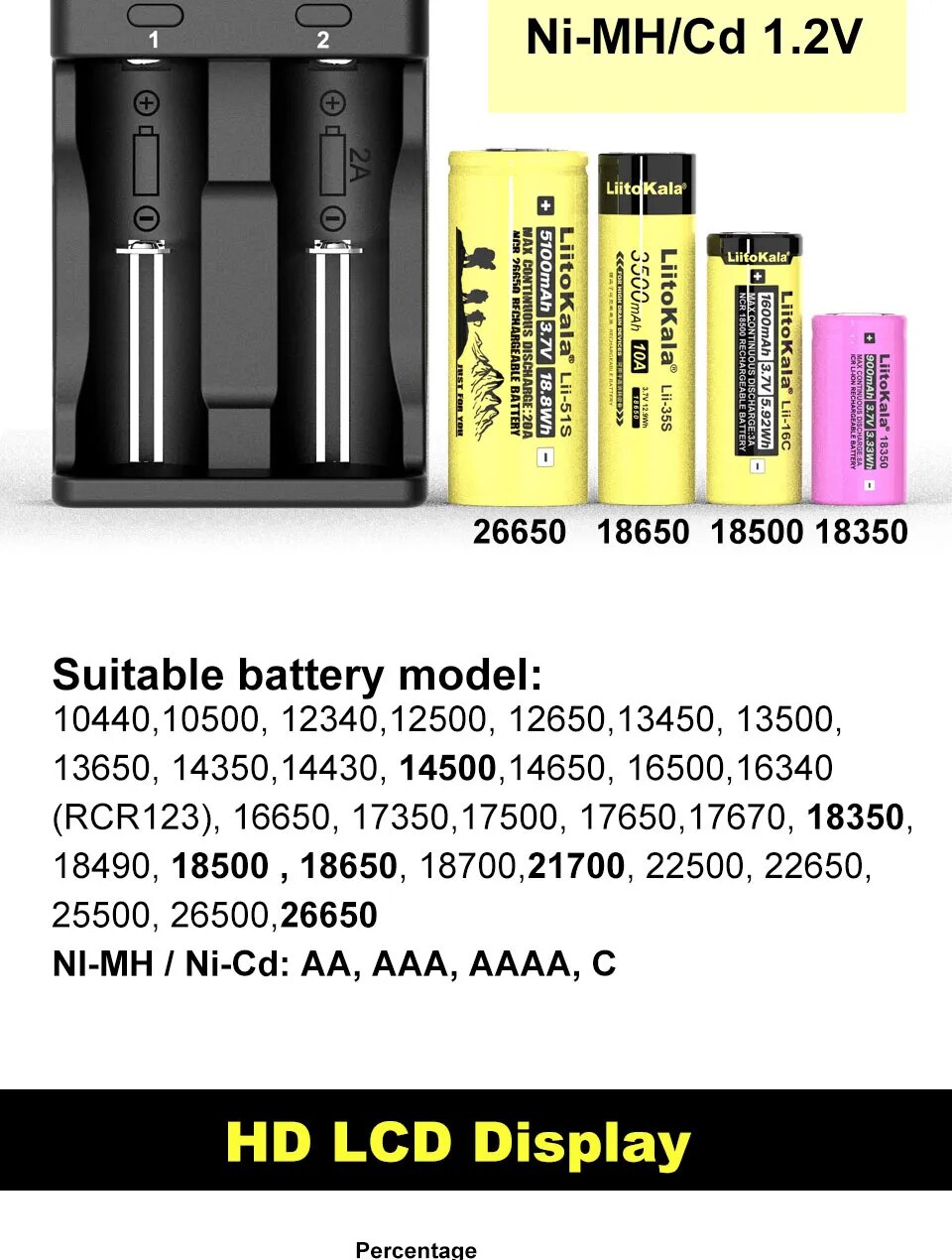

Li-ion / IMR/LiFePO4: 26650,21700,20700, 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440

NiMH/Cd: AA, AAA,SC, C

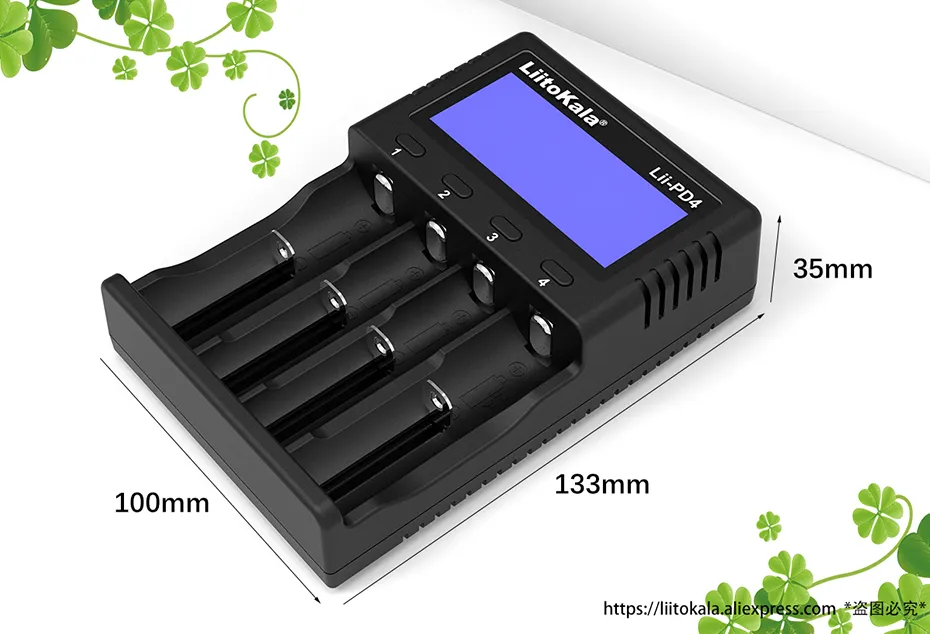

147mm x 100mm x 37mm (L x W x H)

Gewicht: approx221g (nicht darunter AC kabel)
